Visual Signals
VALS Visalert® Strobe Light
- Available in 12VDC and 24VDC, 120VAC and 240VAC
- Five lens colors
- 4,000 hour strobe tube
- Flush or surface mounts on Federal Signal audible signaling devices or control panel
- Indoor/outdoor use
- Type 3R, IP44 enclosure
- UL Listed and CSA Certified
Federal Signal's Visalert® is a three dimensional, triangular warning light designed to be mated with Federal Signal's Model 350 Vibratone® horn and the Model 50GC SelecTone® speaker/amplifier. The Model VALS can also be used as a stand alone device. Visalert is available in five lens colors: amber, blue, clear, green and red.
Knockouts on the 50GC and the 350 audible devices ensure easy installation. The units can be either independently or simultaneously wired with the audible device. Model VALS uses a linear strobe tube and all the circuitry is contained within the lens.

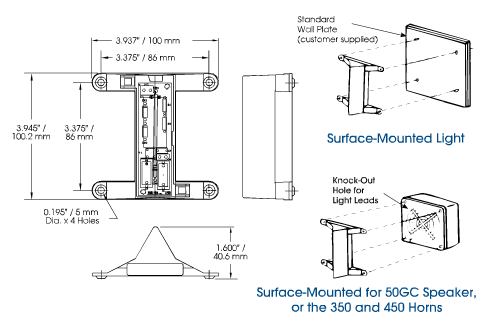

Visalert units are recommended for use in industrial applications and situations where effective visual warning is needed. The Visalert can be flush or surface mounted on the Model 350 horn or Model 50GC speaker/amplifier.
Federal Signal's Visalert strobe light is an affordable, low-maintenance strobe light in a compact size that is perfect for control panel applications.
Special Considerations
- Specify optional audible device:
Models
| Part # | Description | Ship Weight | Net Weight | |
|---|---|---|---|---|
| VALS-012A | Strobe, 12VDC, amber | 0.25 lbs. | 0.1 lbs. | + |
| VALS-012B | Strobe, 12VDC, blue | 0.25 lbs. | 0.1 lbs. | + |
| VALS-012C | Strobe, 12VDC, clear | 0.25 lbs. | 0.1 lbs. | + |
| VALS-012G | Strobe, 12VDC, green | 0.25 lbs. | 0.1 lbs. | + |
| VALS-012R | Strobe, 12VDC, red | 0.25 lbs. | 0.1 lbs. | + |
| VALS-024A | Strobe, 24VDC, amber | 0.25 lbs. | 0.1 lbs. | + |
| VALS-024B | Strobe, 24VDC, blue | 0.25 lbs. | 0.1 lbs. | + |
| VALS-024C | Strobe, 24VDC, clear | 0.25 lbs. | 0.1 lbs. | + |
| VALS-024G | Strobe, 24VDC, green | 0.25 lbs. | 0.1 lbs. | + |
| VALS-024R | Strobe, 24VDC, red | 0.25 lbs. | 0.1 lbs. | + |
| VALS-120A | Strobe, 120VAC, amber | 0.25 lbs. | 0.1 lbs. | + |
| VALS-120B | Strobe, 120VAC, blue | 0.25 lbs. | 0.1 lbs. | + |
| VALS-120C | Strobe, 120VAC, clear | 0.25 lbs. | 0.1 lbs. | + |
| VALS-120G | Strobe, 120VAC, green | 0.25 lbs. | 0.1 lbs. | + |
| VALS-120R | Strobe, 120VAC, red | 0.25 lbs. | 0.1 lbs. | + |
| VALS-240A | Strobe, 240VAC, amber | 0.25 lbs. | 0.1 lbs. | + |
| VALS-240B | Strobe, 240VAC, blue | 0.25 lbs. | 0.1 lbs. | + |
| VALS-240C | Strobe, 240VAC, clear | 0.25 lbs. | 0.1 lbs. | + |
| VALS-240G | Strobe, 240VAC, green | 0.25 lbs. | 0.1 lbs. | + |
| VALS-240R | Strobe, 240VAC, red | 0.25 lbs. | 0.1 lbs. | + |
Accessories
| Part # | Description | Ship Weight | |
|---|---|---|---|
| NOT APPLICABLE | |||
Replacement Parts
| Description | Part # | |
|---|---|---|
| Lens, Amber | K8435D539A | + |
| Lens, Blue | K8435D539A-08 | + |
| Lens, Clear | K8435D539A-02 | + |
| Lens, Green | K8435D539A-03 | + |
| Lens, Red | K8435D539A-07 | + |
| Strobe Tube | K149128A | + |
| Gasket, Visalert | K8435A225 | + |
Agency
| Listed By Underwriter's Laboratory (ULus) | |
|---|---|
| Visual signalling appliances | UEES_E162485.pdf |
| Certified by CSA International | |
|---|---|
| Signal appliances, systems | 4812_05_LR5835_40.pdf |
Specs
| Mount | Surface |
|---|---|
| Voltage | 12VDC 24VDC 120VAC 50/60Hz 240VAC 50/60Hz |
| Operating Current | 0.44-0.10 Amps from 12-48VDC 0.10 Amps at 120VAC 0.07 Amps at 240VAC |
| Light Source/Lamp Style | Strobe Tube |
| Lamp Life | 4,000 Hours |
| Flash Rate/Minute | 80 |
| Peak Candela | 108,000 |
| Operating Temperature Min. | -31 F |
| Operating Temperature Max. | 150 F |
| Enclosure Rating | Type 3R |
| Ingress Protection (IP) | IP44 |
| Dome Colors | Amber Blue Clear Green Red |
| Height | 3.95 IN |
| Width | 3.94 IN |
| Depth | 1.6 IN |
