Visual Signals
LP6 StreamLine® Low Profile Mini Strobe
- Available in 12-48VDC and 120VAC
- Screw-on dome available in five colors
- Surface mount

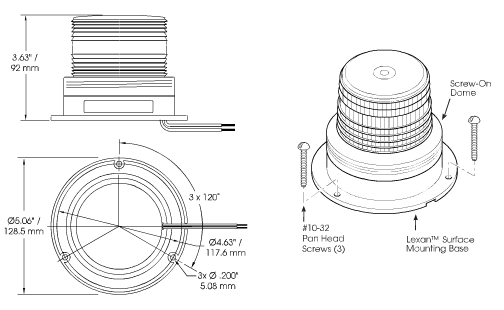

- Low profile - only 3-5/8" high
- Type 4X enclosure
- UL and cUL Listed, CSA Certified
The Model LP6 is a very compact, high power strobe light designed for applications where space is critical. At 3-5/8" high, this strobe light is ideal for fork lift applications where head room is important. The LP6 also mounts easily to small control panels.
The LP6 features a two joule power supply that works in multiple voltages from 12-48VDC to 120VAC. Modular construction incorporates a powerful flash tube and vibration resistant circuit board.
The LP6 housing utilizes a unique screw-on dome for easy relamping and service. The polycarbonate base and lens combination gives this strobe excellent impact and corrosion resistance and meets Type 4X requirements. The LP6 is also UL Listed, cUL Listed and CSA Certified.
The LP6 is available in five colors - amber, blue, clear, green and red.
This economical light does not sacrifice power for price or size.
Models
| Part # | Description | Ship Weight | Net Weight | |
|---|---|---|---|---|
| LP6-012-048A | Light, 12-48VDC, amber | 0.85 lbs. | 0.65 lbs. | + |
| LP6-012-048B | Light, 12-48VDC, blue | 0.85 lbs. | 0.65 lbs. | + |
| LP6-012-048C | Light, 12-48VDC, clear | 0.85 lbs. | 0.65 lbs. | + |
| LP6-012-048G | Light, 12-48VDC, green | 0.85 lbs. | 0.65 lbs. | + |
| LP6-012-048R | Light, 12-48VDC, red | 0.85 lbs. | 0.65 lbs. | + |
| LP6-120A | Strobe, 120VAC, amber | 0.85 lbs. | 0.65 lbs. | + |
| LP6-120B | Strobe, 120VAC, blue | 0.85 lbs. | 0.65 lbs. | + |
| LP6-120C | Strobe, 120VAC, clear | 0.85 lbs. | 0.65 lbs. | + |
| LP6-120G | Strobe, 120VAC, green | 0.85 lbs. | 0.65 lbs. | + |
| LP6-120R | Strobe, 120VAC, red | 0.85 lbs. | 0.65 lbs. | + |
Accessories
| Part # | Description | Ship Weight | |
|---|---|---|---|
| NOT APPLICABLE | |||
Replacement Parts
| Description | Part # | |
|---|---|---|
| Lens, Amber Fresnel | K8589037A | + |
| Lens, Blue Fresnel | K8589037A-01 | + |
| Lens, Clear Fresnel | K8589037A-02 | + |
| Lens, Green Fresnel | K8589037A-03 | + |
| Lens, Red Fresnel | K8589037A-04 | + |
| Strobe Tube | K149130A | + |
| O-Ring, LP6 | K8589038A | + |
| PC Assembly, 012-048VDC | K2005083A-01 | + |
| PC Assembly, 120VAC | K2001887A-02 | + |
| Gasket, Base | K8589039A | + |
Agency
| Listed By Underwriter's Laboratory (ULus) | |
|---|---|
| Visual signalling appliances | UEES_E162485.pdf |
| Listed By Underwriter's Laboratory For Use In Canada (cUL) | |
|---|---|
| Visual signalling appliances certified for Canada | UEES7_E162485.pdf |
| Certified by CSA International | |
|---|---|
| Signal appliances, systems | 4812_05_1126286.pdf |
Specs
| Mount | Surface |
|---|---|
| Voltage | 12-48VDC 120VAC |
| Operating Current | 0.44-0.10 Amps from 12-48VDC 0.10 Amps at 120VAC |
| Light Source/Lamp Style | Strobe Tube |
| Lamp Life | 7,000 Hours |
| Flash Rate/Minute | 65 to 95 |
| Peak Candela | 175,000 |
| Operating Temperature Min. | -31 F |
| Operating Temperature Max. | 150 F |
| Enclosure Rating | Type 4X |
| Dome Colors | Amber Blue Clear Green Red |
| Height | 3.63 IN |
| Diameter | 5 IN |
