Visual Signals
LP1 StreamLine® Low Profile Mini Strobe
- Available in 12VDC, 24VDC, 120VAC and 240VAC
- Easy access dome available in five colors
- Surface mount
- Low profile - only 2.6"H x 2.33"W x 5"L
- Type 4X, IP65 enclosure
- UL and cUL Listed

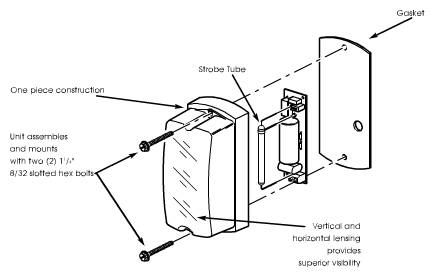

Federal Signal introduces the Model LP1 low profile strobe light. This rectangular Type 4X strobe light is available in five colors: amber, blue, clear, green and red. The LP1 is designed to be flush mounted to control panels or other flat surfaces. Mounting is accomplished with two supplied 1-1/4", 8/32 slotted hex bolts. A polypropylene gasket is supplied to create a water-tight and dust-tight seal. The gasket mounts between the base of the light and the mounting surface.
The user replaceable strobe tube is rated for 4,000 hours of life. The LP1 is available in 12VDC, 24VDC, 120VAC and 240VAC versions. The unit is UL and cUL Listed. Access to the printed circuit board and strobe tube is provided through the back of the unit.
With its Type 4X rating, small size, and bright signal, the LP1 suits an endless number of applications. The LP1 is especially suited for use on control panels, machines, above entry ways, on walls, and along assembly lines. The 12/24VDC units are suitable in battery backup systems and vehicular applications such as forklifts and moving guided vehicles.
Models
| Part # | Description | Ship Weight | Net Weight | |
|---|---|---|---|---|
| LP1-012A | Strobe, 12VDC, amber | 0.6 lbs. | 0.23 lbs. | + |
| LP1-012B | Strobe, 12VDC, blue | 0.6 lbs. | 0.23 lbs. | + |
| LP1-012C | Strobe, 12VDC, clear | 0.6 lbs. | 0.23 lbs. | + |
| LP1-012G | Strobe, 12VDC, green | 0.6 lbs. | 0.23 lbs. | + |
| LP1-012R | Strobe, 12VDC, red | 0.6 lbs. | 0.23 lbs. | + |
| LP1-024A | Strobe, 24VDC, amber | 0.6 lbs. | 0.23 lbs. | + |
| LP1-024B | Strobe, 24VDC, blue | 0.6 lbs. | 0.23 lbs. | + |
| LP1-024C | Strobe, 24VDC, clear | 0.6 lbs. | 0.23 lbs. | + |
| LP1-024G | Strobe, 24VDC, green | 0.6 lbs. | 0.23 lbs. | + |
| LP1-024R | Strobe, 24VDC, red | 0.6 lbs. | 0.23 lbs. | + |
| LP1-120A | Strobe, 120VAC, amber | 0.6 lbs. | 0.23 lbs. | + |
| LP1-120B | Strobe, 120VAC, blue | 0.6 lbs. | 0.23 lbs. | + |
| LP1-120C | Strobe, 120VAC, clear | 0.6 lbs. | 0.23 lbs. | + |
| LP1-120G | Strobe, 120VAC, green | 0.6 lbs. | 0.23 lbs. | + |
| LP1-120R | Strobe, 120VAC, red | 0.6 lbs. | 0.23 lbs. | + |
| LP1-240A | Strobe, 240VAC, amber | 0.6 lbs. | 0.23 lbs. | + |
| LP1-240C | Strobe, 240VAC, clear | 0.6 lbs. | 0.23 lbs. | + |
| LP1-240G | Strobe, 240VAC, green | 0.6 lbs. | 0.23 lbs. | + |
| LP1-240R | Strobe, 240VAC, red | 0.6 lbs. | 0.23 lbs. | + |
Accessories
| Part # | Description | Ship Weight | |
|---|---|---|---|
| NOT APPLICABLE | |||
Replacement Parts
| Description | Part # | |
|---|---|---|
| Strobe Tube | K149128A | + |
| Housing and Lens Assembly, Amber | K8435711A-02 | + |
| Housing and Lens Assembly, Blue | K8435711A-03 | + |
| Housing and Lens Assembly, Clear | K8435711A | + |
| Housing and Lens Assembly, Green | K8435711A-04 | + |
| Housing and Lens Assembly, Red | K8435711A-01 | + |
Agency
| Listed By Underwriter's Laboratory (ULus) | |
|---|---|
| Visual signalling appliances | UEES_E162485.pdf |
| Listed By Underwriter's Laboratory For Use In Canada (cUL) | |
|---|---|
| Visual signalling appliances certified for Canada | UEES7_E162485.pdf |
Specs
| Mount | Surface |
|---|---|
| Voltage | 12VDC 24VDC 120VAC 240VAC |
| Operating Current | 0.18 Amps at 12VDC 0.08 Amps at 24VDC 0.06 Amps at 120VAC 0.03 Amps at 240VAC |
| Light Source/Lamp Style | Strobe Tube |
| Lamp Life | 4,000 Hours |
| Flash Rate/Minute | 80 |
| Peak Candela | 108,000 |
| Effective Candela | 30 |
| Operating Temperature Min. | -31 F |
| Operating Temperature Max. | 151 F |
| Enclosure Rating | Type 4X |
| Ingress Protection (IP) | IP65 |
| Dome Colors | Amber Blue Clear Green Red |
| Height | 2.61 IN |
| Width | 2.33 IN |
| Length | 5.05 IN |
