Visual Signals
400R Rotating Combination Audible/Visual Warning Signal
- Available in 120VAC
- Four dome colors
- Wall mount
- Sounder/Horn (Model 350) sold separately
- Indoor/outdoor use
- Type 3R enclosure
- UL and cUL Listed
Federal Signal's Model 400R audible/visual signal combines the effective warning of a rotating light with an optional Federal Signal Model 350 horn.

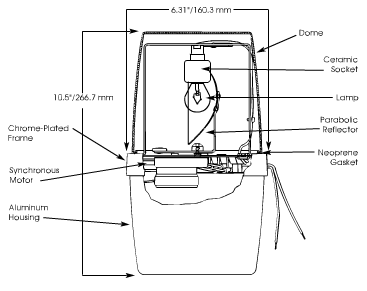

The Model 400R includes a large 4.25-inch diameter rotating reflector assembly for projecting light beams. The unit features an incandescent lamp that produces 60 flashes per minute.
Available in four dome colors: amber, blue, green and red.
The Model 400R is ideal for use wherever both audible and visual warning signals are needed. This rugged unit is excellent for industrial use and adaptable to most in-plant signaling needs.
A modern housing design makes the Model 400R suitable for use in institutional or non-industrial settings requiring an audible/visual alarm system, where heavy-duty industrial equipment might not be appropriate. Sounder/horn (Model 350) sold separately.
Special Considerations
- For audible signaling order optional horn and mounting kit
Models
| Part # | Description | Ship Weight | Net Weight | |
|---|---|---|---|---|
| 400R-120A | Rotating light, 120VAC, amber | 5.1 lbs. | 4.5 lbs. | + |
| 400R-120B | Rotating light, 120VAC, blue | 5.1 lbs. | 4.5 lbs. | + |
| 400R-120G | Rotating light, 120VAC, green | 5.1 lbs. | 4.5 lbs. | + |
| 400R-120R | Rotating light, 120VAC, red | 5.1 lbs. | 4.5 lbs. | + |
Accessories
| Part # | Description | Ship Weight | |
|---|---|---|---|
| 400HMK-AC | Mounting kit, Model 350 horn | 0.95 lbs. | + |
Replacement Parts
| Description | Part # | |
|---|---|---|
| Exterior Dome, Amber | K8547C001A-04 | + |
| Exterior Dome, Blue | K8547C001A-02 | + |
| Exterior Dome, Green | K8547C001A-03 | + |
| Exterior Dome, Red | K8547C001A-01 | + |
| Incandescent Lamp, 120VAC, Series A and B | K8107181A | + |
Agency
| Listed By Underwriter's Laboratory (ULus) | |
|---|---|
| Visual signalling appliances | UEES_E4813.pdf |
| Audible signal appliance, general signal | UCST_E4813.pdf |
| Listed By Underwriter's Laboratory For Use In Canada (cUL) | |
|---|---|
| Visual signalling appliances certified for Canada | UEES7_E4813.pdf |
| Audible signal appliance, general signal, certified for Canada | UCST7_E4813.pdf |
