Visual Signals
141 Electraflash® Flashing Light
- Available in 12VDC, 24VDC and 120VAC
- Five dome colors
- Surface mount or integrated 1/2-inch pipe mount
- Type 3R enclosure
- UL Listed, CSA Certified

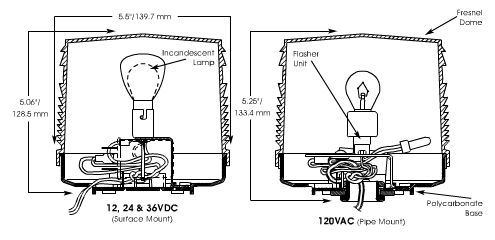

Federal Signal's Electraflash® Model 141 is an economical incandescent flashing light. The Electraflash is less than six inches high and six inches in diameter. It is available in five impact-resistant fresnel dome colors: amber, blue, clear, green and red. The 120VAC model is UL Listed and CSA Certified.
The Model 141 is available in 12VDC, 24VDC and 120VAC. This light consists of a flasher unit with an incandescent bayonet lamp secured to its base (screw-in type lamp in 120VAC only).
The 12VDC and 24VDC units each provide three holes for easy flat surface mounting. The 120VAC unit is ready to mount on a 1/2-inch pipe. Optional mounting brackets are available for the 120VAC unit, including the Model LWMB2 wall mount bracket and the Model LCMB2 corner mount bracket.
Federal Signal's economical flashing lights are designed for both indoor and outdoor environments. Model 141's convenient size and intense light output are ideal for maintenance vehicles, fork lifts, and other material handling equipment. The Electraflash can effectively identify hazardous conditions or dangerous areas.
Federal Signal's Electraflash is a compact warning light designed specifically for use in light-duty industrial applications.
Special Considerations
- Accessories are available for 120VAC models only
Models
| Part # | Description | Ship Weight | Net Weight | |
|---|---|---|---|---|
| 141-012A | Flashing light, 12VDC, amber | 1.1 lbs. | 0.8 lbs. | + |
| 141-012B | Flashing light, 12VDC, blue | 1.1 lbs. | 0.8 lbs. | + |
| 141-012R | Flashing light, 12VDC, red | 1.1 lbs. | 0.8 lbs. | + |
| 141-024A | Flashing light, 24VDC, amber | 1.1 lbs. | 0.8 lbs. | + |
| 141-024B | Flashing light, 24VDC, blue | 1.1 lbs. | 0.8 lbs. | + |
| 141-024G | Flashing light, 24VDC, green | 1.1 lbs. | 0.8 lbs. | + |
| 141-024R | Flashing light, 24VDC, red | 1.1 lbs. | 0.8 lbs. | + |
| 141-120A | Flashing light, 120VAC, amber | 1.3 lbs. | 1 lbs. | + |
| 141-120B | Flashing light, 120VAC, blue | 1.3 lbs. | 1 lbs. | + |
| 141-120C | Flashing light, 120VAC, clear | 1.3 lbs. | 1 lbs. | + |
| 141-120G | Flashing light, 120VAC, green | 1.3 lbs. | 1 lbs. | + |
| 141-120R | Flashing light, 120VAC, red | 1.3 lbs. | 1 lbs. | + |
Accessories
| Part # | Description | Ship Weight | |
|---|---|---|---|
| LCMB2 | Mounting bracket, corner | 2.5 lbs. | + |
| LWMB2 | Mounting kit, wall mount | 2.95 lbs. | + |
Replacement Parts
| Description | Part # | |
|---|---|---|
| Amber Dome | K8263073A | + |
| Blue Dome | K8263073A-01 | + |
| Clear Dome | K8263073A-03 | + |
| Green Dome | K8263073A-04 | + |
| Red Dome | K8263073A-02 | + |
| Incandescent Lamp, 12VDC | K8107212A | + |
| Incandescent Lamp, 24VDC | K8107213A | + |
| Incandescent Lamp, 120VAC, Series A and B | K8107181A | + |
| Flasher, 12VDC | K8263A083A | + |
| Flasher, 24VDC | K8285237A | + |
| Flasher, 120VAC | K8285238A-01 | + |
| Pipe Mount Kit | K8263093A | + |
Agency
| Listed By Underwriter's Laboratory (ULus) | |
|---|---|
| Visual signalling appliances | UEES_E162485.pdf |
| Certified by CSA International | |
|---|---|
| Signal appliances, systems | 4812_05_1355525.pdf |
Specs
| Mount | Surface Mount for 12 / 24VDC Models 1/2" Pipe Mount for 120VAC Model |
|---|---|
| Voltage | 12VDC 24VDC 120VAC 50/60Hz |
| Operating Current | 3.00 Amps at 12VDC 0.90 Amps at 24VDC 0.38 Amps at 120VAC |
| Light Source/Lamp Style | Incandescent Bayonet Style in DC Models Screw Base Incandescent in AC Models |
| Lamp Life | 1,000 Hours at 12VDC 7,000 Hours at 24VDC 7,000 Hours at 120VAC |
| Flash Rate/Minute | 70 |
| Candela | 325 at 12VDC 125 at 24VDC 275 at 120VAC |
| Operating Temp. Min. | -31 F |
| Operating Temp. Max. | 150 F |
| Enclosure Rating | Type 3R |
| Dome Colors | Amber Blue Clear Green Red |
| Height, DC Models | 5.06 IN |
| Height, AC Models | 5.25 IN |
| Diameter | 5.5 IN |
